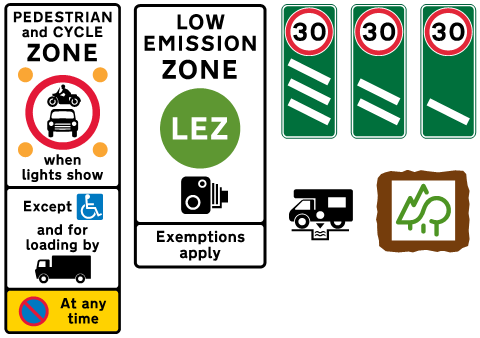

We’re pleased to share that we've now released the graphics we have developed with SignPlot for Transport Scotland for those designing or manufacturing the new signs.
The files are available in both SignPlot and DXF formats. You can download them by pressing the links below – please note that the files will begin downloading automatically. If you have any issues accessing the files, please don’t hesitate to contact our support team via the Support Portal.
Click here to download SignPlot format
Click here to download DXF format
The PDF of the new Scottish Statutory Instrument is also available here. It comes into force on 23 May 2022. That SSI contains graphics we created using SignPlot, but the official document unfortunately reproduces them only to a fairly low resolution.
We have also created a set of detailed working drawings of the new signs and symbols. These are available on this Transport Scotland webpage (scroll to the bottom of it for the links).
